Guhring

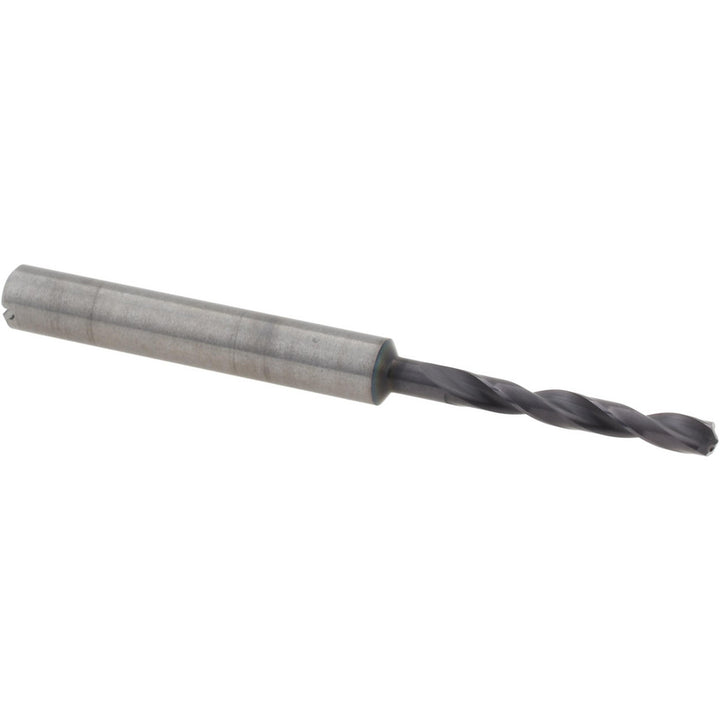

0.1280" Solid Carbide Drill Bit, Multi-layer, 140° point - Guhring 9055110032500
MFR# 9055110032500
$143.86List $184.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingMulti-layer
Description
The Guhring 9055110032500 is a 0.1280" Solid Carbide drill bit with a Multi-layer finish, 140° point. Suited for steel, cast iron, stainless steel.
Specifications
Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.004 to 0.016 mm
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size0.1280
Drill bit size range0.1000 - 0.1500
Drill point angle degrees140
Flute length1.1024
Flute typeRegular Spiral
Material gradeSubmicron
Overall length2.5984
Point type4 Facet
Primary workpiece materialSteel; Cast Iron; Stainless Steel
Shank diameter0.2362
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
