Guhring
0.1575" Solid Carbide Drill Bit, Coated, 140° point - Guhring 9055120040000
MFR# 9055120040000Series 5512
$244.65List $308.32
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingCoated
Description

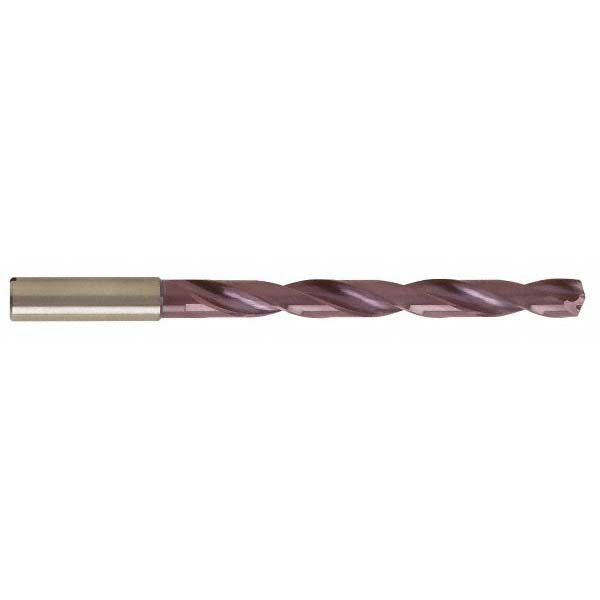

The Guhring 9055120040000 is a 0.1575" Solid Carbide drill bit with a Coated finish, 140° point. Series 5512.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.004 to +0.016 mm
Drill bit gradeHigh Performance
Drill bit size0.1575
Drill point angle degrees140
Flute length (mm)37.50
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationBrass; Cast Iron; Hardened Materials; Nickel Alloy; Stainless Steel; Steel; Titanium Alloy
Material gradeSubmicron
Maximum drilling depth1.2400
Overall length (mm)75.00
Point typeSU
Shank diameter (mm)6.00
Shank length (mm)36.00
Shank typeStraight
Spiral typeRegular
StandardsDIN 6537
Threaded shankNo
Tool applicationSelf-Centering
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
