Guhring
15/32" Solid Carbide Drill Bit, TiAlN, 140° point - Guhring 9055120119100
MFR# 9055120119100Series 5512
$460.59List $590.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/32
CoatingTiAlN
Description

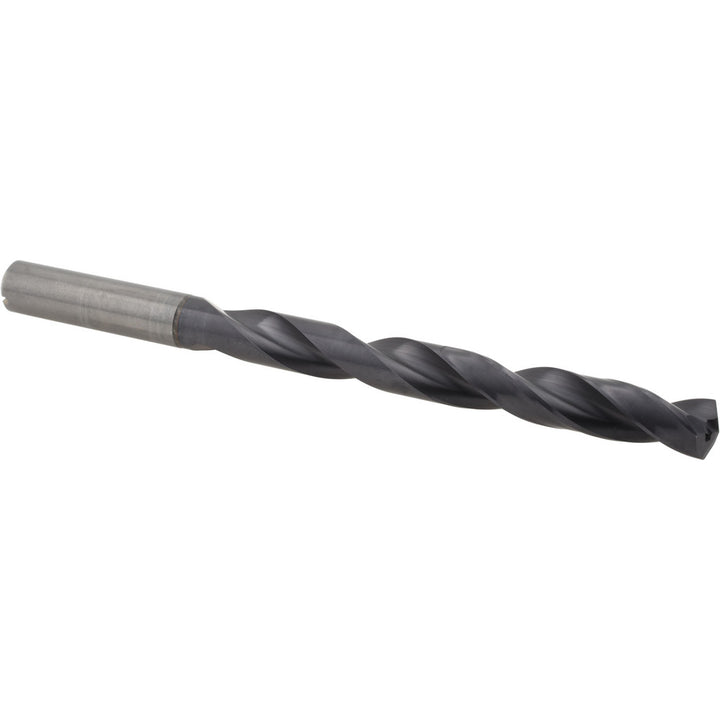

The Guhring 9055120119100 is a 15/32" Solid Carbide drill bit with a TiAlN finish, 140° point. Series 5512.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.007 to +0.025 mm
Drill bit size in15/32
Drill point angle degrees140
Flute length (mm)114.00
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationBrass; Cast Iron; Hard Material; Nickel Alloy; Stainless Steel; Steel; Titanium Alloy
Material gradeSubmicron
Maximum drilling depth3.7850
Overall length (mm)163
Point typeSU
Shank diameter0.4724
Shank length1.9291
Shank typeStraight-Cylindrical
StandardsDIN 6537
Threaded shankNo
Tool applicationSelf-Centering
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
