Guhring

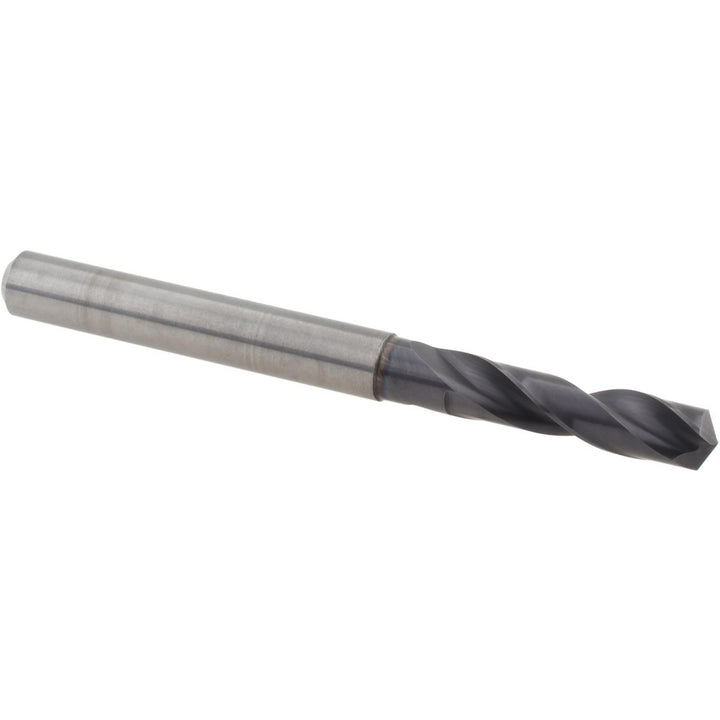

0.2185" Solid Carbide Drill Bit, Multi-layer, 140° point - Guhring 9055140055500
MFR# 9055140055500Series 5514
$99.18List $127.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The Guhring 9055140055500 is a 0.2185" Solid Carbide drill bit with a Multi-layer finish, 140° point. Suited for brass, cast iron, hardened materials, nickel alloy, stainless steel, steel, titanium alloy. Series 5514.
Specifications
Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.004 to +0.016 mm
Drill bit size0.2185
Drill bit size range0.2000 to 0.2500
Drill point angle140
Flute length1.1024
Flute typeRegular Spiral
Material gradeSubmicron
Number of flutes2
Overall length2.5984
Point type4 Facet
Primary workpiece materialBrass; Cast Iron; Hardened Materials; Nickel Alloy; Stainless Steel; Steel; Titanium Alloy
Shank diameter0.2362
Shank length1.4960
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
