Guhring

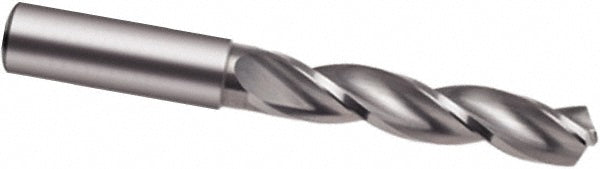

0.1457" Solid Carbide Drill Bit, 130° point - Guhring 9055180037000
MFR# 9055180037000Series 5518
$83.97List $107.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Guhring 9055180037000 is a 0.1457" Solid Carbide drill bit, 130° point. Suited for cast iron, aluminum & non-ferrous. Series 5518.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1457
Drill bit size range0.1000 - 0.1500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length1.1024
Flute typeRegular Spiral
Maximum drilling depth0.8840
Number of flutes3
Overall length2.5984
Point typeProprietary
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)6
Shank length (mm)36
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN 6535; DIN 6537 L
Tool applicationSelf-Centering
Web thinningWeb-Thinned
