Guhring

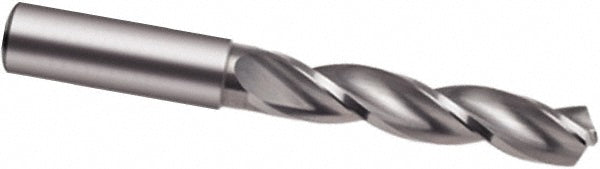

#16 Solid Carbide Drill Bit, 130° point - Guhring 9055180045000
MFR# 9055180045000Series 5518
$118.69List $149.58
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Guhring 9055180045000 is a #16 Solid Carbide drill bit, 130° point. Suited for cast iron, aluminum & non-ferrous. Series 5518.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1770
Drill bit size range0.1500 - 0.2000
Drill bit size wire#16
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length1.4173
Flute typeRegular Spiral
Maximum drilling depth1.1520
Number of flutes3
Overall length2.9134
Point typeProprietary
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)6
Shank length (mm)36
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN 6535; DIN 6537 L
Tool applicationSelf-Centering
Web thinningWeb-Thinned
