Guhring

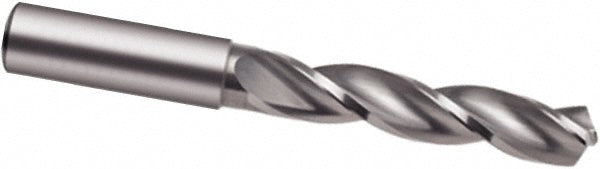

0.3189" Solid Carbide Drill Bit, 130° point - Guhring 9055180081000
MFR# 9055180081000
$120.05List $151.29
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Guhring 9055180081000 is a 0.3189" Solid Carbide drill bit, 130° point. Suited for cast iron, aluminum & non-ferrous.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.3189
Drill bit size range0.3000 - 0.3500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length2.4016
Flute typeRegular Spiral
Number of flutes3
Overall length4.0551
Point typeProprietary
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)10
Specification designationDIN
Spiral typeRegular
Web thinningWeb-Thinned
