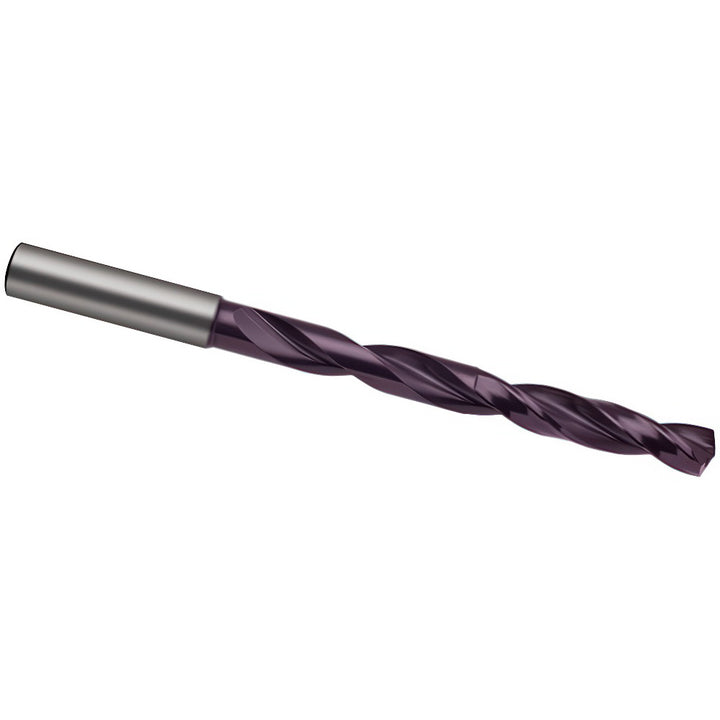

0.4055" Solid Carbide Drill Bit, 130° point - Guhring 9055180103000
MFR# 9055180103000
$253.53List $319.51
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Guhring 9055180103000 is a 0.4055" Solid Carbide drill bit, 130° point. Suited for cast iron, aluminum & non-ferrous.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.4055
Drill bit size range0.4000 - 0.5000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length2.7953
Flute typeRegular Spiral
Material gradeDK460UF
Number of flutes3
Overall length4.6457
Point typeStandard
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous
Shank diameter0.4724
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationTapered
