Guhring

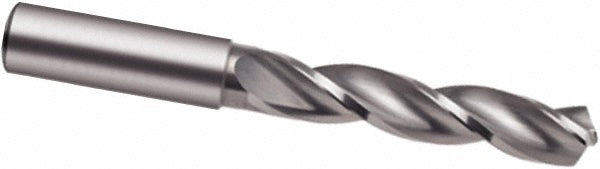

0.5315" Solid Carbide Drill Bit, 130° point - Guhring 9055180135000
MFR# 9055180135000Series 5518
$334.09List $421.03
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Guhring 9055180135000 is a 0.5315" Solid Carbide drill bit, 130° point. Suited for cast iron, aluminum & non-ferrous. Series 5518.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.5315
Drill bit size range0.5000 - 0.6500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length3.0315
Flute typeRegular Spiral
Maximum drilling depth2.2340
Number of flutes3
Overall length4.8819
Point typeProprietary
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)14
Shank length (mm)45
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN 6535; DIN 6537 L
Tool applicationSelf-Centering
Web thinningWeb-Thinned
