Guhring

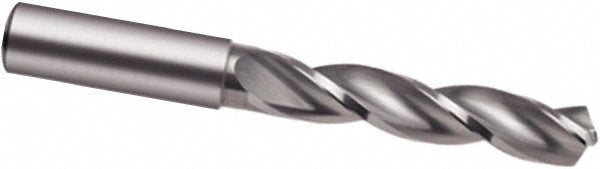

0.7874" Solid Carbide Drill Bit, 130° point - Guhring 9055180200000
MFR# 9055180200000
$476.69List $611.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Guhring 9055180200000 is a 0.7874" Solid Carbide drill bit, 130° point. Suited for cast iron, aluminum & non-ferrous.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.7874
Drill bit size range0.6500+
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length3.9764
Flute typeRegular Spiral
Number of flutes3
Overall length6.0236
Point typeProprietary
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)20
Specification designationDIN
Spiral typeRegular
Web thinningWeb-Thinned
