Guhring

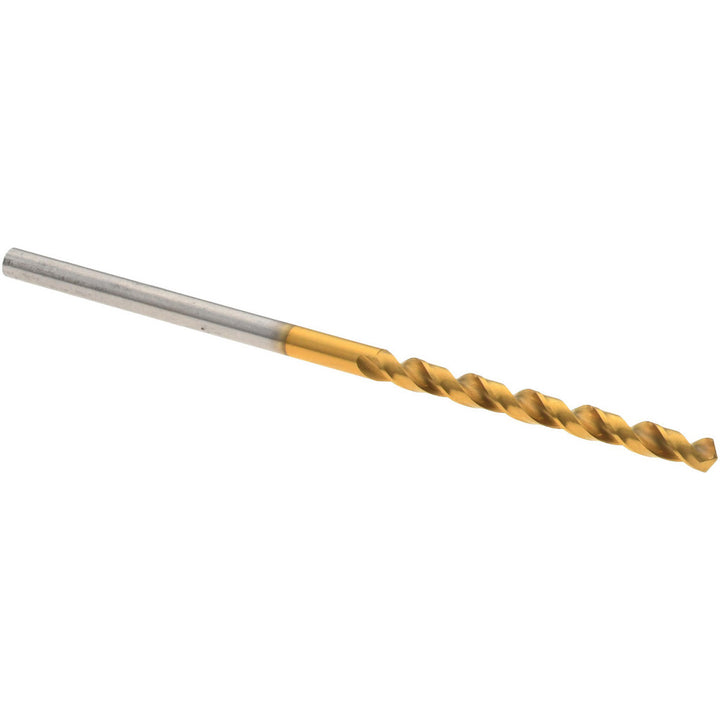

#49 Cobalt Drill Bit, TiN, 118° point - Guhring 9055190018500
MFR# 9055190018500
$6.88List $8.66
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Guhring 9055190018500 is a #49 Cobalt drill bit with a TiN finish, 118° point. Suited for steel, stainless steel, cast iron.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit gradeGeneral Purpose
Drill bit materialCobalt
Drill bit size0.0730
Drill bit size range0.0500 - 0.1000
Drill bit size wire#49
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length0.8661
Flute typeRegular Spiral
Material gradeM35
Overall length1.8110
Point type4 Facet
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter (mm)1.85
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
Web configurationTapered
