Guhring

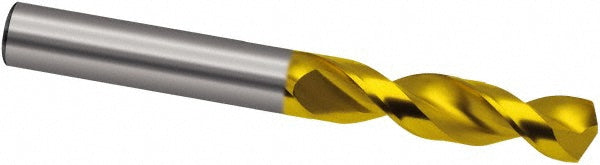

1/16" Powdered Metal Stub Drill Bit, Coated, 130° point - Guhring 9055210016000
MFR# 9055210016000Series 5521
$11.50List $14.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/16
Flutes2
CoatingCoated
Description
The Guhring 9055210016000 is a 1/16" Powdered Metal Stub drill bit with a Coated finish, 130° point. Suited for titanium alloy. Series 5521.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHigh Performance
Drill bit size in1/16
Drill bit size range0.0000 to 0.1000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)10.00
Flute typeParabolic
Maximum drilling depth0.2990
Number of flutes2
Overall length (mm)34.00
Point typeCone Relief
Primary workpiece materialTitanium Alloy
Shank diameter (mm)1.60
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 1897
Tool materialPowdered Metal
Web thinningWeb-Thinned
