Guhring

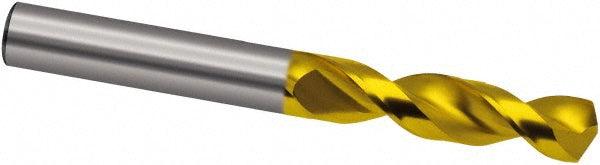

0.2205" Powdered Metal Stub Drill Bit, Coated, 130° point - Guhring 9055210056000
MFR# 9055210056000Series 5521
$18.93List $23.85
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9055210056000 is a 0.2205" Powdered Metal Stub drill bit with a Coated finish, 130° point. Suited for titanium alloy. Series 5521.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHigh Performance
Drill bit size0.2205
Drill bit size range0.2000 to 0.2500
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)28.00
Flute typeParabolic
Maximum drilling depth0.7720
Number of flutes2
Overall length (mm)66.00
Point typeCone Relief
Primary workpiece materialTitanium Alloy
Shank diameter (mm)5.60
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 1897
Tool materialPowdered Metal
Web thinningWeb-Thinned
