Guhring

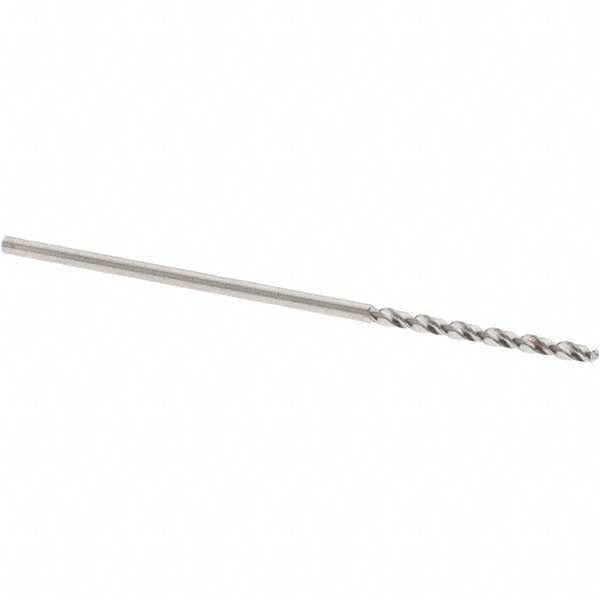

#60 Cobalt Drill Bit, 118° point - Guhring 9055230010200
MFR# 9055230010200Series 5523
$3.80List $4.78
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9055230010200 is a #60 Cobalt drill bit, 118° point. Suited for aluminum. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialCobalt
Drill bit size0.0400
Drill bit size range0.0000 - 0.0500
Drill bit size wire#60
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)12.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth0.4120
Number of flutes2
Overall length (mm)34.00
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter (mm)1.02
Shank length (mm)22.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
