3/32" Cobalt Drill Bit, 118° point - Guhring 9055230023800
MFR# 9055230023800Series 5523
$4.35List $5.48
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/32
Flutes2
Description

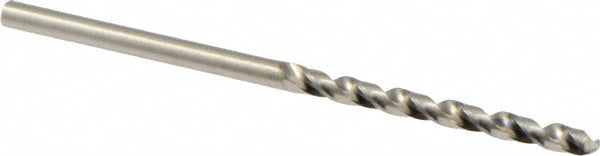

The Guhring 9055230023800 is a 3/32" Cobalt drill bit, 118° point. Suited for aluminum. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialCobalt
Drill bit size in3/32
Drill bit size range0.0500 - 0.1000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)30.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth1.0410
Number of flutes2
Overall length (mm)57.00
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter in3/32
Shank length (mm)27.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
