Guhring

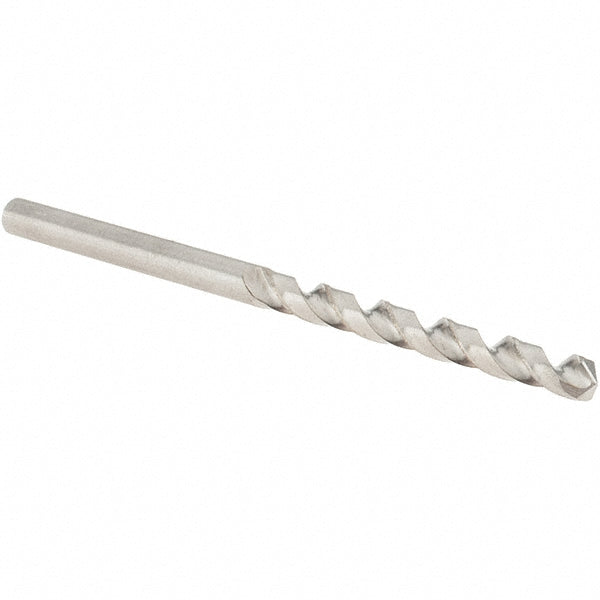

9/64" Cobalt Drill Bit, 118° point - Guhring 9055230035700
MFR# 9055230035700Series 5523
$4.66List $5.87
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/64
Flutes2
Description
The Guhring 9055230035700 is a 9/64" Cobalt drill bit, 118° point. Suited for aluminum. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialCobalt
Drill bit size in9/64
Drill bit size range0.1000 - 0.1500
Drill bit size wire#28
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)39.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth1.3250
Number of flutes2
Overall length (mm)70.00
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter in9/64
Shank length (mm)31.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
