Guhring

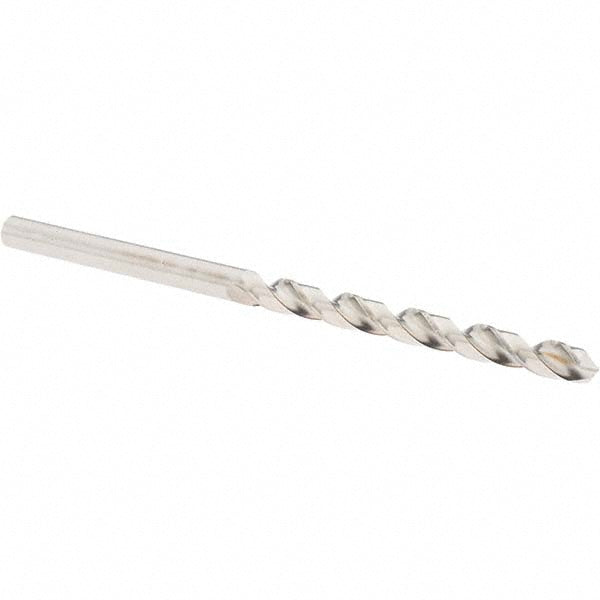

#25 Cobalt Drill Bit, 118° point - Guhring 9055230038000
MFR# 9055230038000Series 5523
$5.13List $6.46
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9055230038000 is a #25 Cobalt drill bit, 118° point. Suited for aluminum. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialCobalt
Drill bit size0.1496
Drill bit size range0.1000 - 0.1500
Drill bit size wire#25
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)43.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth1.4690
Number of flutes2
Overall length (mm)75.00
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter0.1496
Shank length (mm)32.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
