Guhring

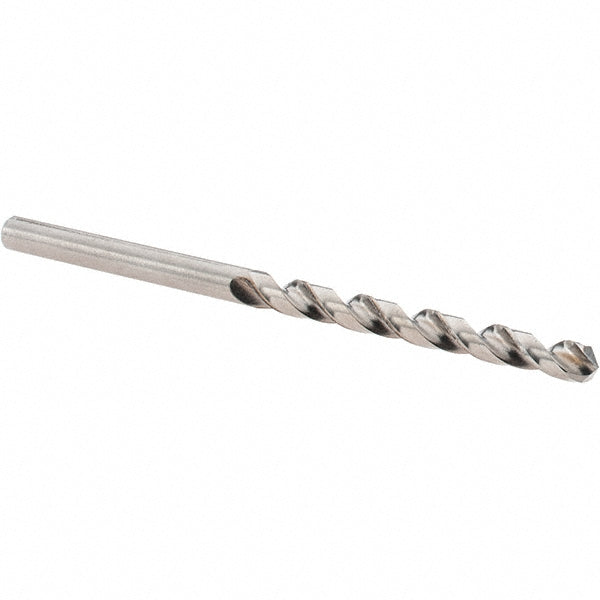

5/32" Cobalt Drill Bit, 118° point - Guhring 9055230039700
MFR# 9055230039700Series 5523
$4.99List $6.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/32
Flutes2
Description
The Guhring 9055230039700 is a 5/32" Cobalt drill bit, 118° point. Suited for aluminum. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialCobalt
Drill bit size in5/32
Drill bit size range0.1500 - 0.2000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)43.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth1.4590
Number of flutes2
Overall length (mm)75.00
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter in5/32
Shank length (mm)32.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
