Guhring

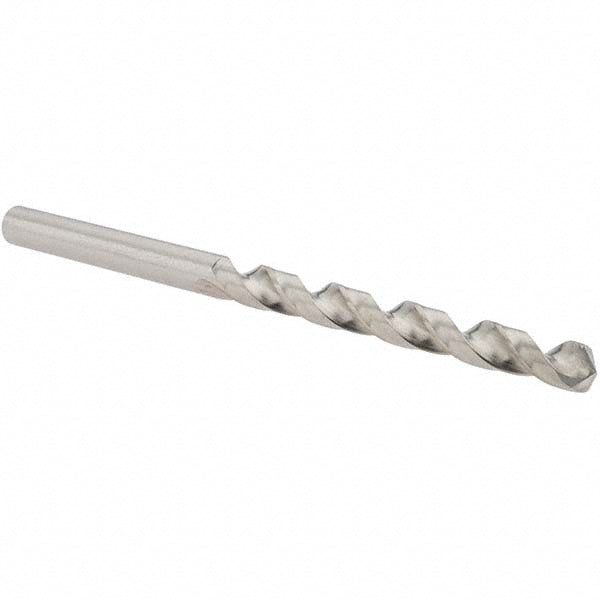

#4 Cobalt Drill Bit, 118° point - Guhring 9055230053100
MFR# 9055230053100Series 5523
$7.73List $9.91
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9055230053100 is a #4 Cobalt drill bit, 118° point. Suited for aluminum. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialCobalt
Drill bit size0.2090
Drill bit size range0.2000 - 0.2500
Drill bit size wire#4
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)57.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth1.9310
Number of flutes2
Overall length (mm)93.00
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter (mm)5.31
Shank length (mm)36.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
