Guhring
15/64" Cobalt Drill Bit, 118° point - Guhring 9055230059500
MFR# 9055230059500Series 5523
$8.42List $10.79
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/64
Flutes2
Description

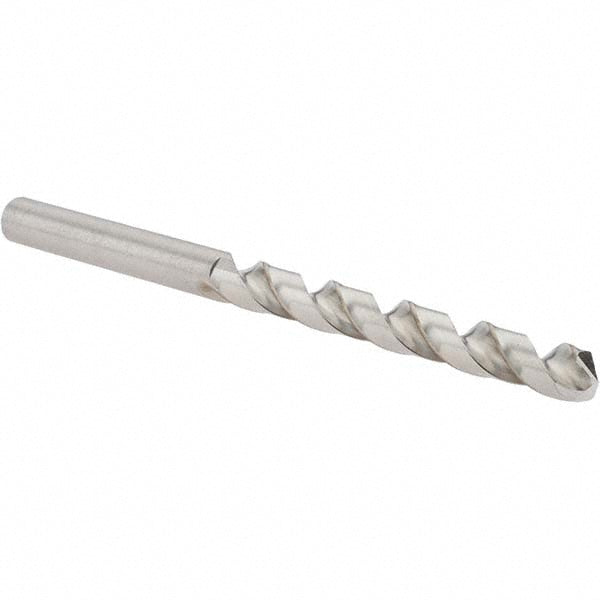

The Guhring 9055230059500 is a 15/64" Cobalt drill bit, 118° point. Suited for steel, cast iron, aluminum & non-ferrous. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeGeneral Purpose
Drill bit materialCobalt
Drill bit size in15/64
Drill bit size range0.2000 - 0.2500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length2.2441
Flute typeRegular Spiral
Material gradeM35
Maximum drilling depth1.8930
Number of flutes2
Overall length3.6614
Point type4 Facet
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter in15/64
Shank length (mm)36
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
