Guhring

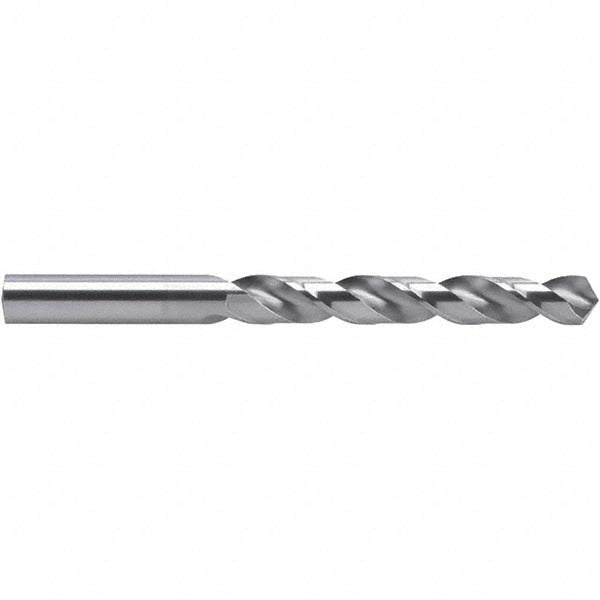

Letter B Cobalt Drill Bit, 118° point - Guhring 9055230060400
MFR# 9055230060400Series 5523
$9.70List $12.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9055230060400 is a Letter B Cobalt drill bit, 118° point. Suited for aluminum. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit materialCobalt
Drill bit size0.2380
Drill bit size letterB
Drill bit size range0.2000 - 0.2500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)63.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth2.1240
Number of flutes2
Overall length (mm)101.00
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter (mm)6.04
Shank length (mm)38.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
