Guhring

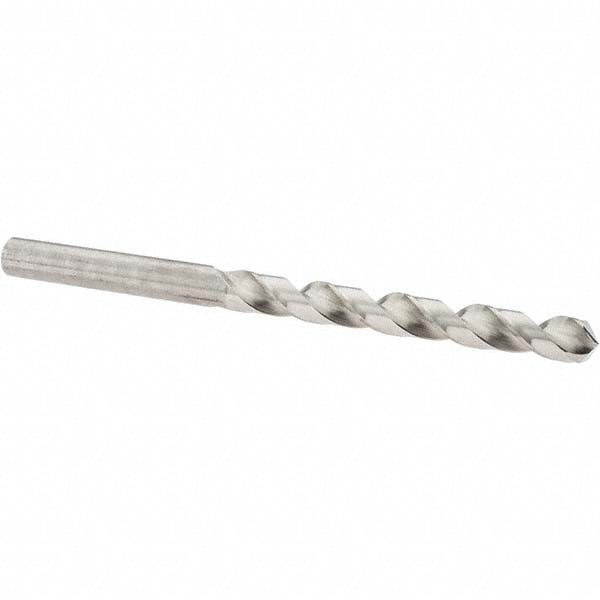

Letter J Cobalt Drill Bit, 118° point - Guhring 9055230070300
MFR# 9055230070300Series 5523
$11.16List $14.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9055230070300 is a Letter J Cobalt drill bit, 118° point. Suited for aluminum. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit materialCobalt
Drill bit size0.2770
Drill bit size letterJ
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)69.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth2.3020
Number of flutes2
Overall length (mm)109.00
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter (mm)7.03
Shank length (mm)40.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
