Guhring

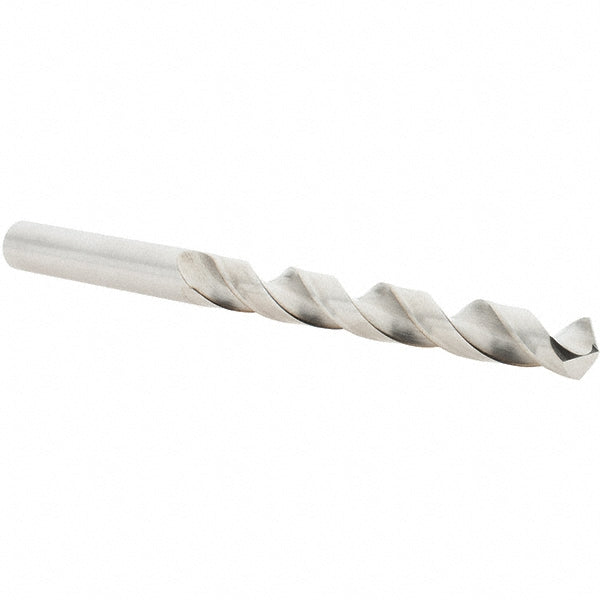

25/64" Cobalt Drill Bit, 118° point - Guhring 9055230099200
MFR# 9055230099200Series 5523
$24.22List $31.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size25/64
Flutes2
Description
The Guhring 9055230099200 is a 25/64" Cobalt drill bit, 118° point. Suited for aluminum. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialCobalt
Drill bit size in25/64
Drill bit size range0.3500 - 0.4000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)87.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth2.8390
Number of flutes2
Overall length (mm)133.00
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter in25/64
Shank length (mm)46.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
