Guhring

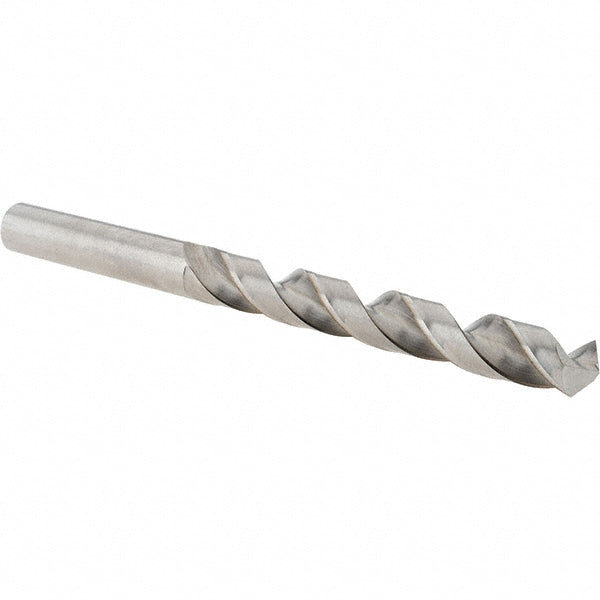

13/32" Cobalt Drill Bit, 118° point - Guhring 9055230103200
MFR# 9055230103200Series 5523
$22.54List $28.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/32
Flutes2
Description
The Guhring 9055230103200 is a 13/32" Cobalt drill bit, 118° point. Suited for steel, cast iron, aluminum & non-ferrous. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit gradeGeneral Purpose
Drill bit materialCobalt
Drill bit size in13/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length3.4252
Flute typeRegular Spiral
Material gradeM35
Maximum drilling depth2.8160
Number of flutes2
Overall length5.2362
Point type4 Facet
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter in13/32
Shank length (mm)46
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
