Guhring

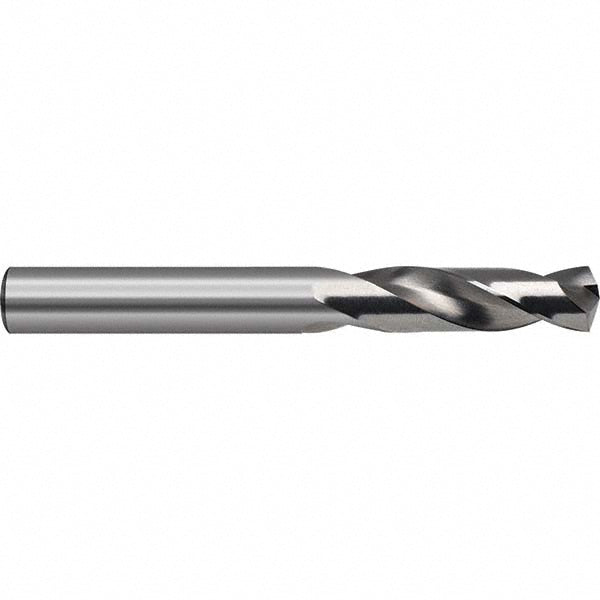

5/64" Cobalt Stub Drill Bit, 118° point - Guhring 9055240019800
MFR# 9055240019800Series 5524
$2.93List $3.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/64
Flutes2
Description
The Guhring 9055240019800 is a 5/64" Cobalt Stub drill bit, 118° point. Suited for aluminum. Series 5524.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size in5/64
Drill bit size range0.0000 to 0.1000
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)11.00
Flute typeSpiral
Maximum drilling depth0.3560
Number of flutes2
Overall length1.4173
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter0.0781
Shank length0.9843
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 1897
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
