Guhring

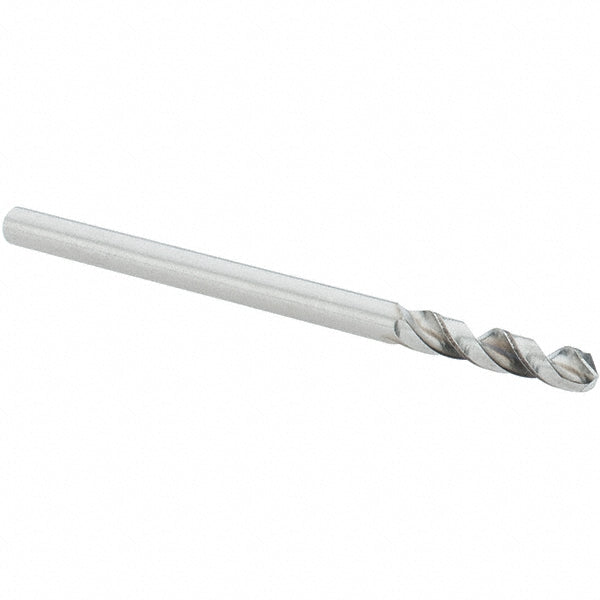

0.0906" Cobalt Stub Drill Bit, Straw, 118° point - Guhring 9055240023000
MFR# 9055240023000Series 5524
$3.66List $4.69
Save 21%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description
The Guhring 9055240023000 is a 0.0906" Cobalt Stub drill bit with a Straw finish, 118° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous. Series 5524.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size0.0906
Drill bit size range0.0000 to 0.1000
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)13.00
Flute typeRegular Spiral
Material gradeM35
Maximum drilling depth0.3760
Number of flutes2
Overall length1.5748
Point type4 Facet
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.0906
Shank length1.0630
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
