Guhring

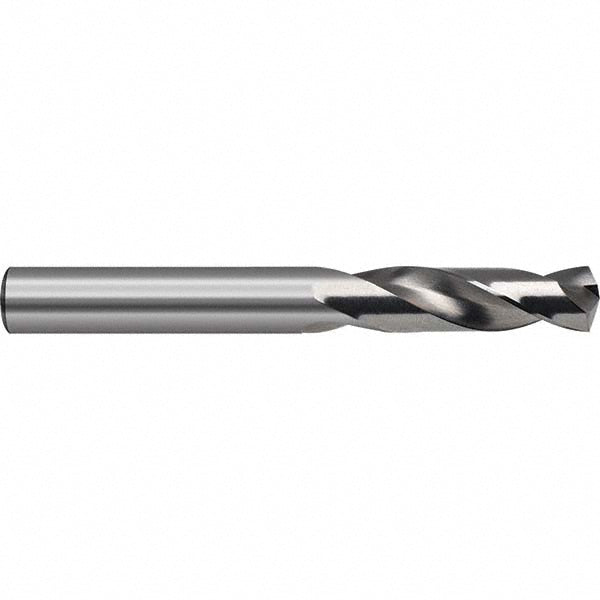

15/32" Cobalt Stub Drill Bit, Straw, 118° point - Guhring 9055240119100
MFR# 9055240119100Series 5524
$24.18List $30.48
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/32
Flutes2
CoatingStraw
Description
The Guhring 9055240119100 is a 15/32" Cobalt Stub drill bit with a Straw finish, 118° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous. Series 5524.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit size in15/32
Drill bit size range0.4500 to 0.5000
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)47.00
Flute typeRegular Spiral
Material gradeM35
Maximum drilling depth1.3050
Number of flutes2
Overall length3.7402
Point type4 Facet
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.4688
Shank length1.8898
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
