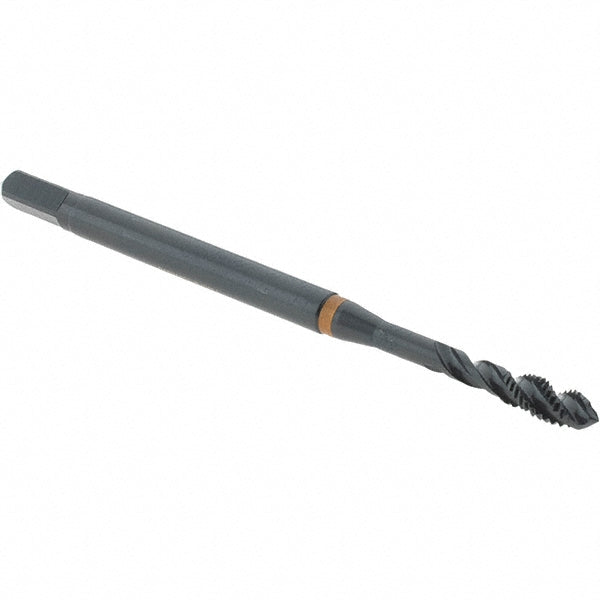

M3 x 0.50 Metric Cobalt Tap, Oxide - Guhring 9057340030000

Guhring

M3 x 0.50 Metric Cobalt Tap, Oxide - Guhring 9057340030000

MFR# 9057340030000Series 5734

$16.43List $21.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
CoatingOxide

Description

The Guhring 9057340030000 is a Metric Cobalt tap with a Oxide finish. 3 flutes.

Specifications

ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloy Steel; Alloy Tool Steel; Aluminum Alloy; Case Hardened Steel; Cast Iron; Ductile Iron; Free Cutting Steel; Heat Treated Steel; Malleable Cast Iron; Stainless Steel; Structural Steel; Tool Steel
Neck length0.4724
Number of flutes3
Overall length2.2047
OversizeNo
Shank diameter0.1378
Square size (mm)2.70
Tapping depth0.7087
Thread directionRight Hand
Thread length0.2362
Thread limitD3
Thread pitch (mm)0.50
Thread size (mm)M3 x 0.50
Thread standardMetric
