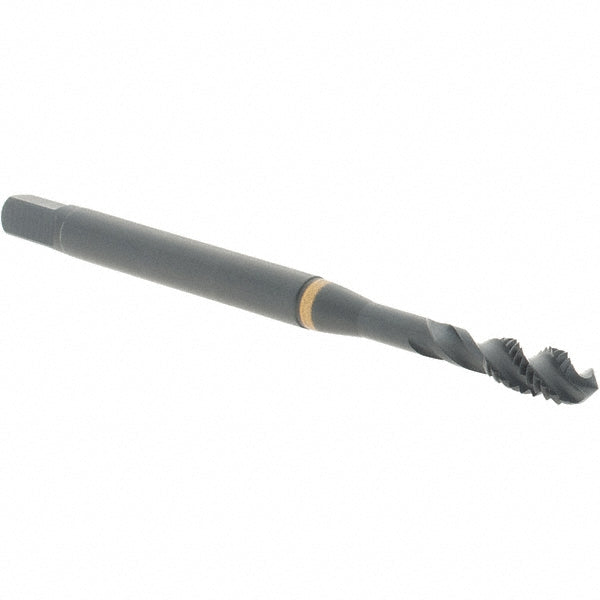

M4 x 0.70 Metric Cobalt Tap, Oxide - Guhring 9057340040000

Guhring

M4 x 0.70 Metric Cobalt Tap, Oxide - Guhring 9057340040000

MFR# 9057340040000Series 5734

$16.43List $21.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
CoatingOxide

Description

The Guhring 9057340040000 is a Metric Cobalt tap with a Oxide finish. 3 flutes.

Specifications

ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloy Steel; Alloy Tool Steel; Aluminum Alloy; Case Hardened Steel; Cast Iron; Ductile Iron; Free Cutting Steel; Heat Treated Steel; Malleable Cast Iron; Stainless Steel; Structural Steel; Tool Steel
Neck length0.5315
Number of flutes3
Overall length2.4803
OversizeNo
Shank diameter0.1772
Square size (mm)3.40
Tapping depth0.8268
Thread directionRight Hand
Thread length0.2953
Thread limitD4
Thread pitch (mm)0.70
Thread size (mm)M4 x 0.70
Thread standardMetric
