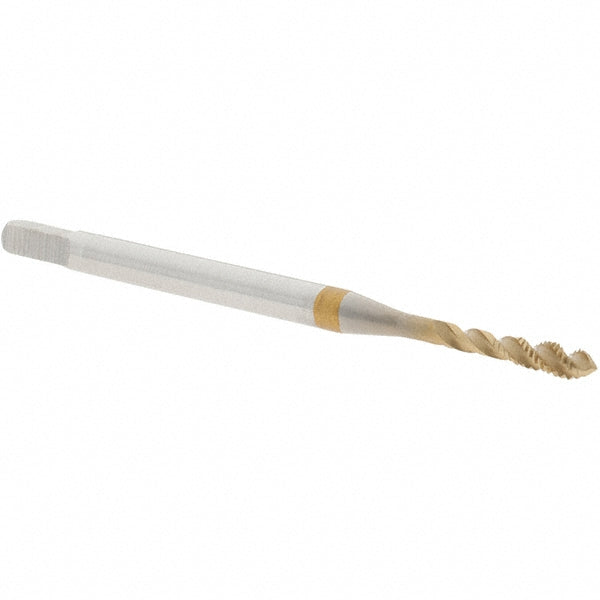

M2 x 0.40 Metric Cobalt Tap, TICN - Guhring 9057370020000

Guhring

M2 x 0.40 Metric Cobalt Tap, TICN - Guhring 9057370020000

MFR# 9057370020000Series 5737

$18.13List $23.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
CoatingTICN

Description

The Guhring 9057370020000 is a Metric Cobalt tap with a TICN finish. 3 flutes.

Specifications

ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishTICN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloy Steel; Alloy Tool Steel; Aluminum Alloy; Case Hardened Steel; Cast Iron; Ductile Iron; Free Cutting Steel; Heat Treated Steel; Malleable Cast Iron; Stainless Steel; Structural Steel; Tool Steel
Neck length0.3543
Number of flutes3
Overall length1.7717
OversizeNo
Shank diameter0.1102
Square size (mm)2.10
Tapping depth0.5315
Thread directionRight Hand
Thread length0.1772
Thread limitD3
Thread pitch (mm)0.40
Thread size (mm)M2 x 0.40
Thread standardMetric
