Guhring

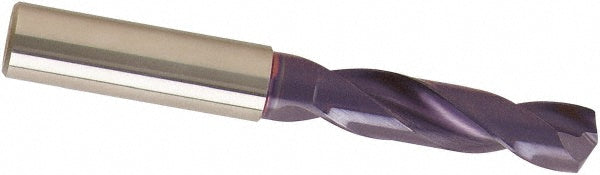

0.3780" Solid Carbide Drill Bit, nano-A, 140° point - Guhring 9057410096000
MFR# 9057410096000Series 5741
$176.25List $222.11
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Coatingnano-A
Description
The Guhring 9057410096000 is a 0.3780" Solid Carbide drill bit with a nano-A finish, 140° point. Suited for stainless steel, nickel alloy, titanium alloy. Series 5741.
Specifications
Coating finishnano-A
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size0.3780
Drill bit size range0.3500 to 0.4000
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)47.00
Flute typeSpiral
Material gradeK40
Number of flutes2
Overall length (mm)89.00
Point typeSU
Primary workpiece materialStainless Steel; Nickel Alloy; Titanium Alloy
Shank diameter (mm)10.00
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
Tool materialSolid Carbide
