Guhring

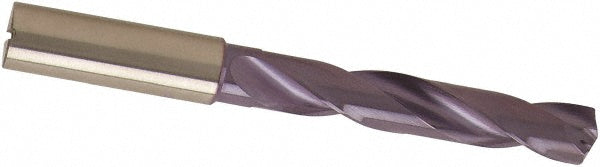

Letter I Solid Carbide Drill Bit, Multi-layer, 140° point - Guhring 9057440069000
MFR# 9057440069000
$208.84List $267.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The Guhring 9057440069000 is a Letter I Solid Carbide drill bit with a Multi-layer finish, 140° point. Suited for stainless steel, high-temp alloy.
Specifications
Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size0.2720
Drill bit size letterI
Drill bit size range0.2500 - 0.3000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length2.0866
Flute typeRegular Spiral
Number of flutes2
Overall length3.5827
Point type4 Facet
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter (mm)8
Specification designationDIN
Spiral typeRegular
Web thinningWeb-Thinned
