Guhring

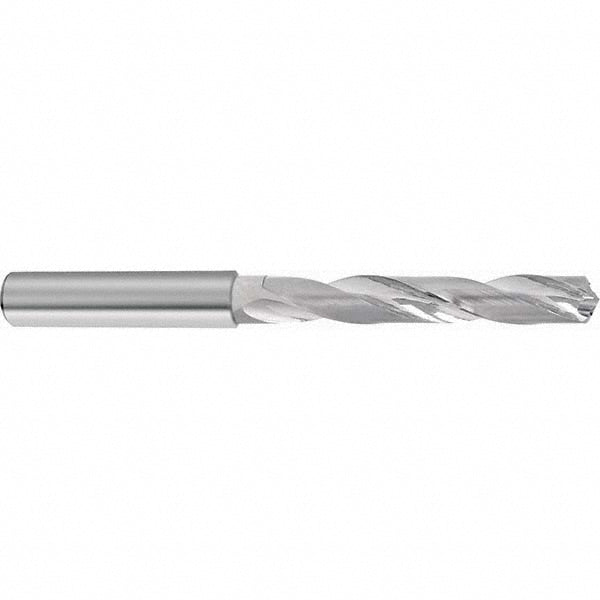

0.4803" Solid Carbide Drill Bit, 140° point - Guhring 9057680122000
MFR# 9057680122000
$458.57List $588.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9057680122000 is a 0.4803" Solid Carbide drill bit, 140° point. Suited for aluminum & non-ferrous.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size0.4803
Drill bit size range0.4000 - 0.5000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length3.0315
Flute typeRegular Spiral
Material gradeUltra Fine Grain
Maximum drilling depth (mm)58.70
Number of flutes2
Overall length4.8819
Point typeCone Relief
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter (mm)14
Shank length (mm)45
Shank typeStraight
Spiral typeRegular
