Guhring

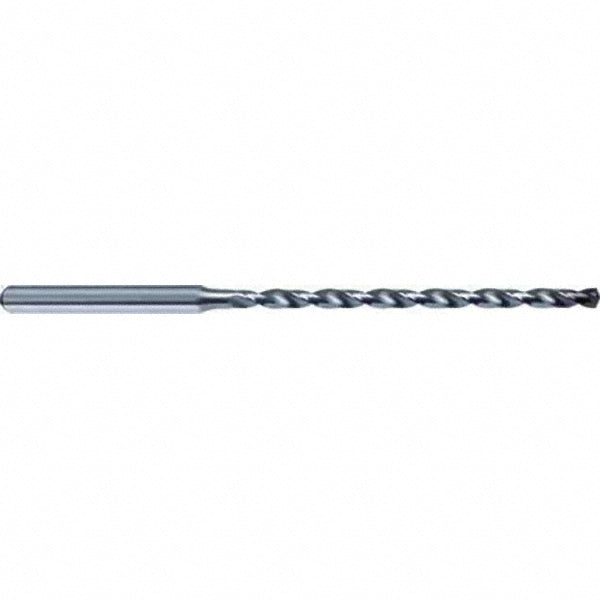

0.0689" Solid Carbide Screw Machine Drill Bit, TiAlN, 135° point - Guhring 9064120017500
MFR# 9064120017500Series 6412
$221.64List $284.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Guhring 9064120017500 is a 0.0689" Solid Carbide Screw Machine drill bit with a TiAlN finish, 135° point. Suited for steel, stainless steel, cast iron. Series 6412.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter toleranceh7
Drill bit gradeHigh Performance
Drill bit size0.0689
Drill bit size range (mm)0.00 - 3.50
Drill length typeScrew Machine
Drill point angle135
Drill point length (mm)32.00
Flute by diameter ratio15xD
Flute length (mm)32.00
Flute typeRegular Spiral
Maximum drilling depth (mm)29.30
Number of flutes2
Overall length2.7559
Point type4 Facet
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter0.1575
Shank length1.4961
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
Web thinningWeb-Thinned
