Guhring

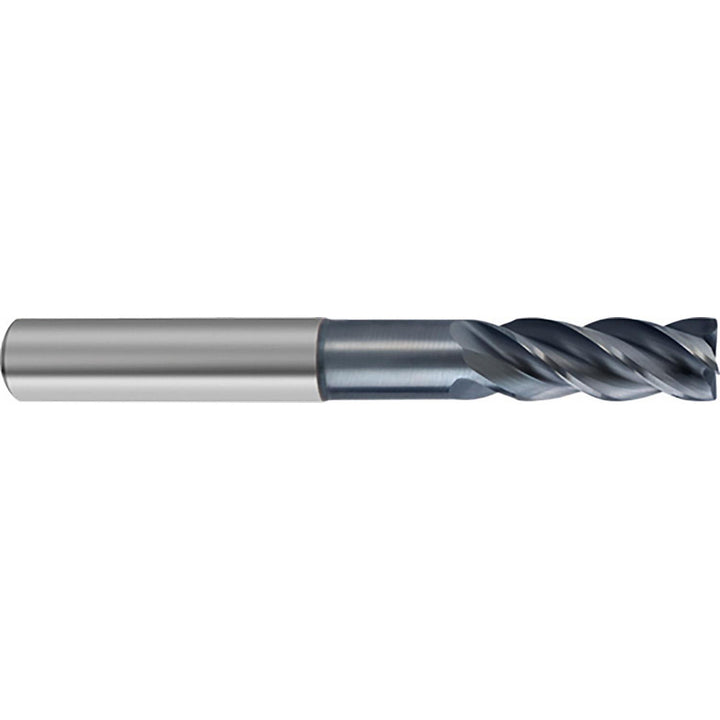

0.1969" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlCrN - Guhring 9064800050000
MFR# 9064800050000Series 6480
$64.67List $82.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlCrN
Description
The Guhring 9064800050000 is a 0.1969 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a AlCrN finish for longer tool life. Series 6480.
Specifications
CentercuttingYes
Coating finishAlCrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle38; 40
Length of cut (mm)15.00
Length typeLong
Material applicationHigh-Alloy Steel; Soft Metal; Tough Alloy
Material gradeProprietary
Mill diameter0.1969
Neck diameter (mm)4.70
Number of flutes4
Overall length (mm)65.00
Reach length (mm)28.00
Shank diameter0.1969
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
