Guhring

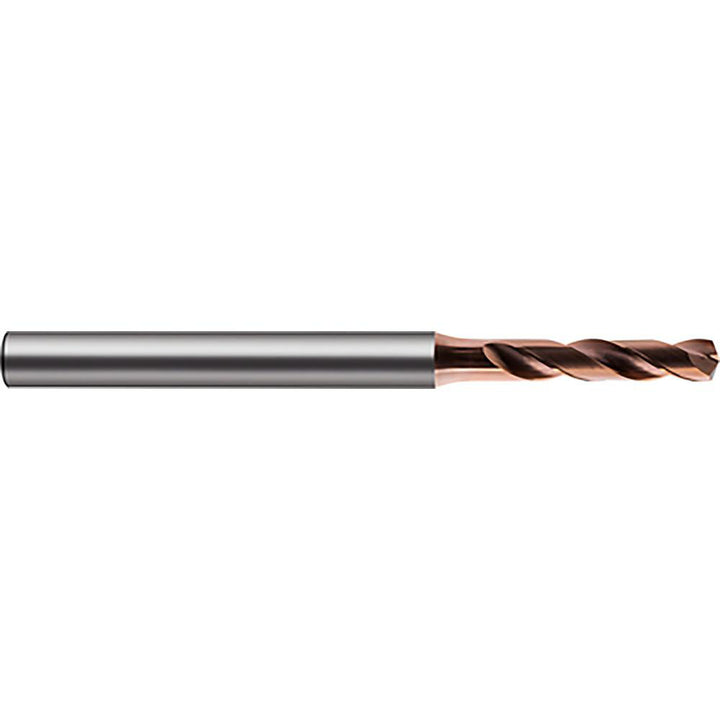

2.50mm Solid Carbide Drill Bit, Perrox, 140° point - Guhring 9064870025000
MFR# 9064870025000Series 6487
$118.13List $151.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingPerrox
Description
The Guhring 9064870025000 is a 2.50mm Solid Carbide drill bit with a Perrox finish, 140° point. Suited for stainless steel, superalloys & titanium. Series 6487.
Specifications
Coating finishPerrox
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size (mm)2.50
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)13.80
Flute typeSpiral
Maximum drilling depth (mm)10.05
Overall length (mm)50.00
Point typeFaceted
Primary workpiece materialStainless Steel; Superalloys & Titanium
Shank diameter (mm)4.00
Shank typeStraight-Cylindrical
Tool applicationVery Small Hole Drilling
Tool materialSolid Carbide
Web thinningWeb-Thinned
