Guhring

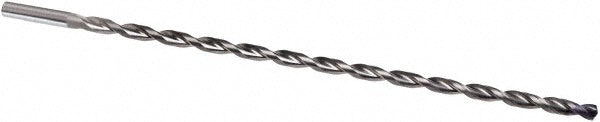

1/2" Solid Carbide Drill Bit, TiAlN, 135° point - Guhring 9065090127000
MFR# 9065090127000Series 6509
$929.43List $1,171.31
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/2
Flutes2
CoatingTiAlN
Description
The Guhring 9065090127000 is a 1/2" Solid Carbide drill bit with a TiAlN finish, 135° point. Suited for cast iron, stainless steel, steel. Series 6509.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter toleranceh7
Drill bit gradeHigh Performance
Drill bit size in1/2
Drill point angle135
Flute by diameter ratio15xD
Flute length (mm)248.00
Flute typeSpiral
Maximum drilling depth9.0140
Number of flutes2
Overall length (mm)297.00
Point typeRT100 T
Primary workpiece materialCast Iron; Stainless Steel; Steel
Secondary workpiece materialAluminum; Titanium Alloy
Shank diameter (mm)14.00
Shank length (mm)45.00
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsCalifornia PROP 65
Tool applicationDeep Hole Drilling
Tool materialSolid Carbide
Web thinningWeb-Thinned
