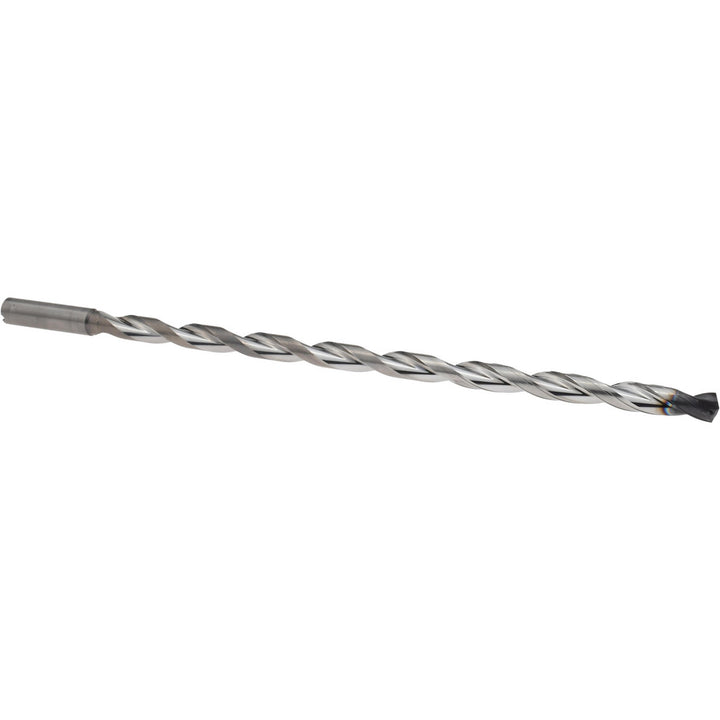

7/16" Solid Carbide Drill Bit, TiAlN, 135° point - Guhring 9065110111100

Guhring

7/16" Solid Carbide Drill Bit, TiAlN, 135° point - Guhring 9065110111100

MFR# 9065110111100Series 6511

$991.90List $1,272.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/16
Flutes2
CoatingTiAlN

Description

The Guhring 9065110111100 is a 7/16" Solid Carbide drill bit with a TiAlN finish, 135° point. Suited for cast iron, stainless steel, steel. Series 6511.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size in7/16
Drill point angle135
Flute by diameter ratio20xD
Flute length (mm)274.00
Flute typeSpiral
Material gradeSubmicron
Maximum drilling depth (mm)311.89
Number of flutes2
Overall length (mm)323.00
Point typeStandard
Primary workpiece materialCast Iron; Stainless Steel; Steel
Secondary workpiece materialAluminum; Titanium Alloy
Shank diameter (mm)12.00
Shank length (mm)40.00
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsCalifornia PROP 65
Tool applicationDeep Hole Drilling
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
