Guhring

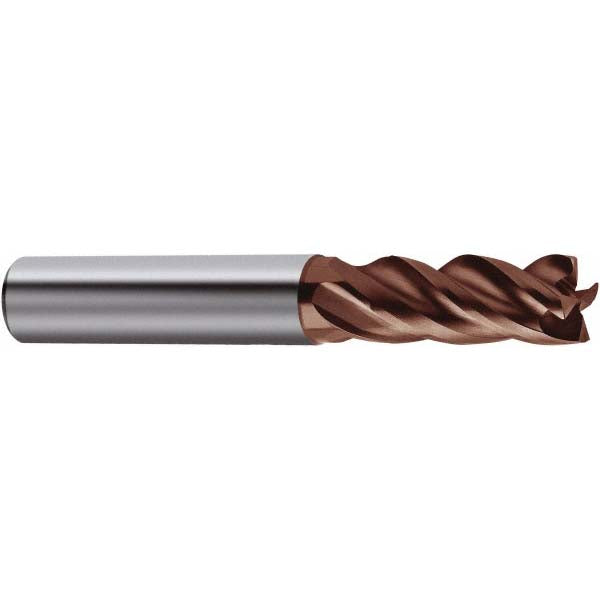

0.7677" 4-Flute Solid Carbide Single End Mill, nano-Si - Guhring 9067360195000
MFR# 9067360195000Series RF100
$498.70List $639.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
Coatingnano-Si
Description
The Guhring 9067360195000 is a 0.7677 4-flute Solid Carbide (Proprietary) single end mill with a nano-Si finish for longer tool life. Series RF100.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishnano-Si
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Length of cut1.4961
Length typeStandard
Material gradeProprietary
Mill diameter0.7677
Mill diameter toleranceh10
Neck diameter (mm)19.00
Number of flutes4
Reach length2.0472
Shank diameter0.7874
Shank diameter toleranceh6
Shank typeWeldon Flat
Variable helixYes
Variable indexNo
