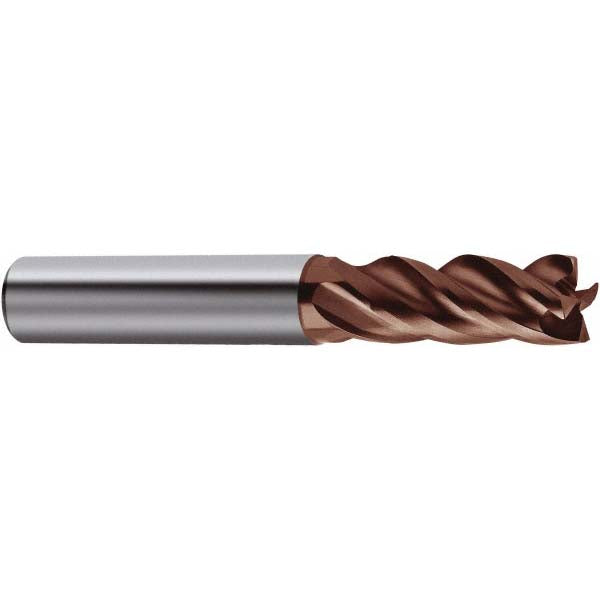

0.1575" 4-Flute Solid Carbide Single End Mill, nano-Si - Guhring 9067370040000

Guhring

0.1575" 4-Flute Solid Carbide Single End Mill, nano-Si - Guhring 9067370040000

MFR# 9067370040000Series RF100

$64.72List $83.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
Coatingnano-Si

Description

The Guhring 9067370040000 is a 0.1575 4-flute Solid Carbide (Proprietary) single end mill with a nano-Si finish for longer tool life. Series RF100.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishnano-Si
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Length of cut0.4331
Length typeStandard
Material gradeProprietary
Maximum helix angle38
Mill diameter0.1575
Mill diameter toleranceh10
Minimum helix angle36
Neck diameter (mm)3.80
Number of flutes4
Reach length0.7087
Shank diameter0.2362
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexNo
