Guhring

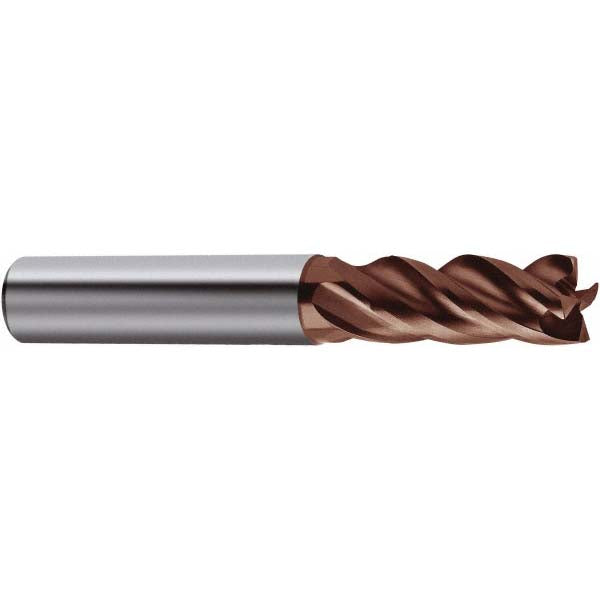

1" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlSiN - Guhring 9067570254000
MFR# 9067570254000Series 6757
$745.56List $956.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes4
MaterialSolid Carbide
CoatingTiAlSiN
Description
The Guhring 9067570254000 is a 1 4-flute Solid Carbide (Ultra Fine Micrograin) corner radius & corner chamfer end mill with a TiAlSiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/2 length of cut, 5 overall length. Series 6757.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0100
Chamfer width0.0100
ChipbreakerNo
Coating finishTiAlSiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix styleVariable
Length of cut in1-1/2
Length typeRegular
Manufacturers catalog number9067570254000
Material gradeUltra Fine Micrograin
Material removal typeRoughing & Finishing
Mill diameter in1
Mill diameter toleranceh10
Number of flutes4
Overall length in5
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length in1-1/2
Secondary workpiece materialNon-Ferrous Metal
Shank diameter in1
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexNo
