Guhring

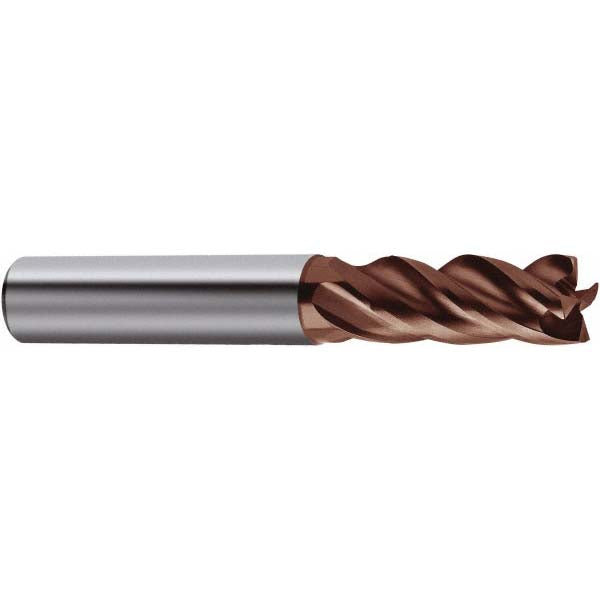

5/16" 4-Flute Solid Carbide Corner Radius End Mill, nano-Si - Guhring 9067590079420

MFR# 9067590079420Series 6759

$75.45List $96.77 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes4

MaterialSolid Carbide

Coatingnano-Si

Description

The Guhring 9067590079420 is a 5/16 4-flute Solid Carbide (Extra Fine Micrograin) corner radius end mill with a nano-Si finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 3/4 length of cut, 2-1/2 overall length. Series 6759.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishnano-Si

Coolant throughNo

Corner radius0.0150

Corner radius tolerance-0.002 to 0.002 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Length of cut in3/4

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal; Other Non-Ferrous Metal; Hard Material

Material gradeExtra Fine Micrograin

Material removal typeRoughing & Finishing

Mill diameter in5/16

Mill diameter toleranceh10

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialNon-Ferrous Metal; Hard Material

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
