Guhring

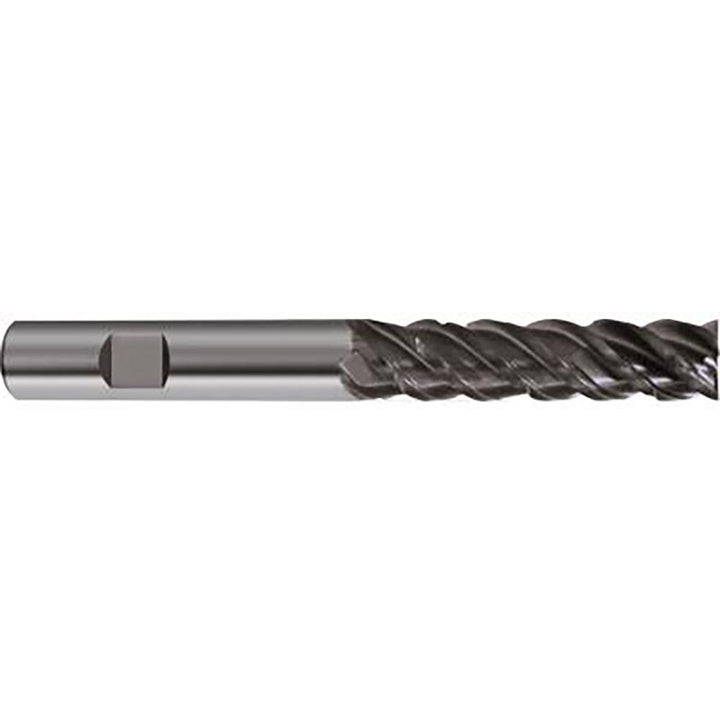

0.1575" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Guhring 9067660040000

MFR# 9067660040000Series 6766

$80.63List $103.40 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Guhring 9067660040000 is a 0.1575 4-flute Solid Carbide corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. Series 6766.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length (mm)0.06

Chamfer width0.0024

ChipbreakerYes

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle48

Helix styleHigh

Length of cut0.6299

Length typeExtra Long

Manufacturers catalog number9067660040000

Material removal typeRoughing & Finishing

Mill diameter0.1575

Mill diameter toleranceh10

Number of flutes4

Overall length (mm)65.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Reach length (mm)16.00

Secondary workpiece materialNon-Ferrous Metal

Shank diameter (mm)6.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
