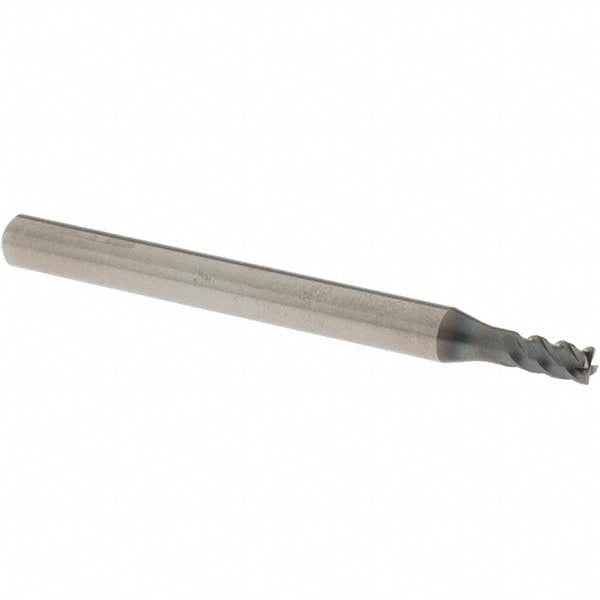

0.1575" 4-Flute Solid Carbide Corner Radius End Mill, WXS - OSG 457104011

MFR# 457104011Series 4571

$76.87List $98.59 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingWXS

Description

The OSG 457104011 is a 0.1575 4-flute Solid Carbide corner radius end mill with a WXS finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series 4571.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWXS

Coolant throughNo

Corner radius0.0079

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut0.6250

Length typeRegular

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material removal typeRoughing & Finishing

Mill diameter0.1575

Mill diameter tolerance0.00 to -0.02 mm

Neck diameter (mm)3.80

Number of flutes4

Overall length (mm)70.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length0.4728

Shank diameter (mm)6.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
