Guhring

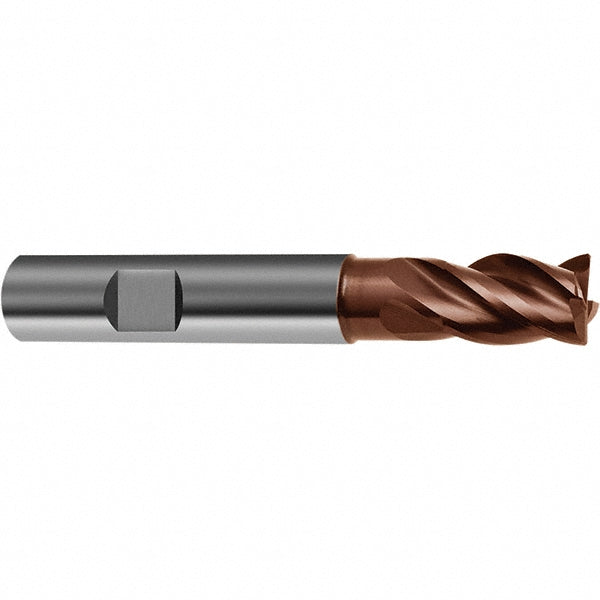

3/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlSiN - Guhring 9068740095200
MFR# 9068740095200Series 6874
$80.69List $103.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingTiAlSiN
Description
The Guhring 9068740095200 is a 3/8 4-flute Solid Carbide (Micrograin) corner radius & corner chamfer end mill with a TiAlSiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 5/8 length of cut, 2 overall length. Series 6874.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0040
Chamfer width0.0040
ChipbreakerNo
Coating finishTiAlSiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix styleVariable
Length of cut in5/8
Length typeStub
Manufacturers catalog number9068740095200
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/8
Mill diameter toleranceh10
Number of flutes4
Overall length in2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length in5/8
Secondary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
