Guhring
7-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nano-A - Guhring 9069970127000
MFR# 9069970127000Series 6997
$201.63List $258.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
MaterialSolid Carbide
Coatingnano-A
Description

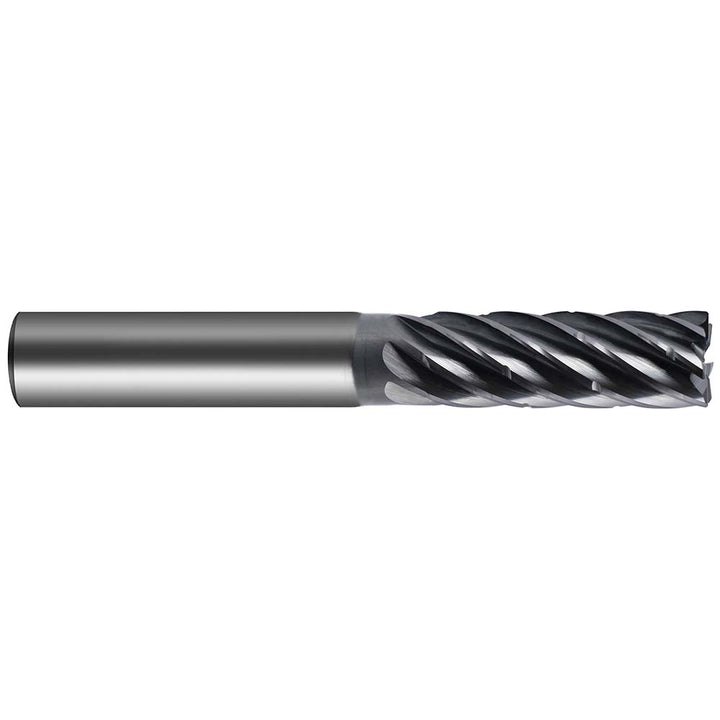

The Guhring 9069970127000 is a 7-flute Solid Carbide corner radius & corner chamfer end mill with a nano-A finish for longer tool life. 1-1/4 length of cut, 3-1/2 overall length. Series 6997.
Specifications
CentercuttingNo
Chamfer width0.0100
Coating finishnano-A
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute typeHelical
Length of cut in1-1/4
Manufacturers catalog number9069970127000
Model number6997
Number of flutes7
Overall length in3-1/2
Shank diameter in1/2
Shank typeWith Flats
Variable helixNo
Variable indexYes
