Guhring

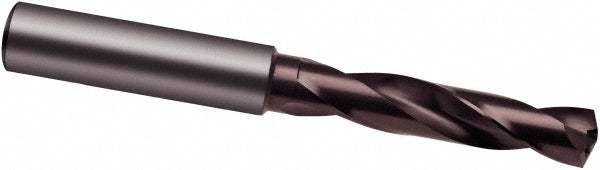

#25 Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Guhring 9085100038000
MFR# 9085100038000Series 8510
$140.84List $180.64
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9085100038000 is a #25 Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for titanium alloy. Series 8510.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size0.1495
Drill bit size range0.1000 to 0.1500
Drill bit size wire#25
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)24.00
Flute typeSpiral
Material gradeK40
Maximum drilling depth0.7200
Number of flutes2
Overall length (mm)66.00
Point typeVA
Primary workpiece materialTitanium Alloy
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 6537 K
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
