Guhring
4.40mm Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Guhring 9085100044000
MFR# 9085100044000Series 8510
$110.50List $141.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description

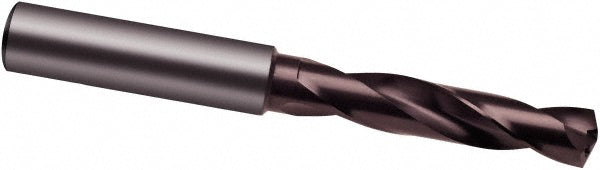

The Guhring 9085100044000 is a 4.40mm Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for titanium alloy. Series 8510.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size (mm)4.40
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)24.00
Flute typeSpiral
Maximum drilling depth0.6850
Number of flutes2
Overall length2.5984
Point typeVA
Primary workpiece materialTitanium Alloy
Shank diameter0.2362
Shank length1.6535
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 K
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
