Guhring

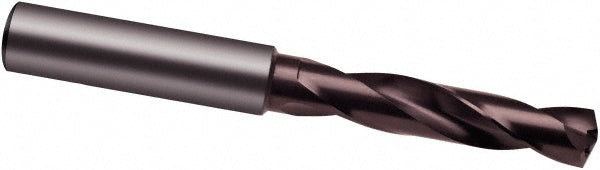

7/32" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Guhring 9085100055600
MFR# 9085100055600Series 8510
$173.53List $222.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/32
Flutes2
CoatingMulti-layer
Description
The Guhring 9085100055600 is a 7/32" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 140° point. Suited for stainless steel, high-temp alloy. Series 8510.
Specifications
Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size in7/32
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)28.00
Flute typeRegular Spiral
Material gradeK40
Maximum drilling depth0.7740
Number of flutes2
Overall length2.5984
Point typeFacet
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter0.2362
Shank length1.4961
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN 6537 K
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
