0.2559" Solid Carbide Drill Bit, nano-A, 140° point - Guhring 9085110065000
MFR# 9085110065000Series 8511
$208.27List $267.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

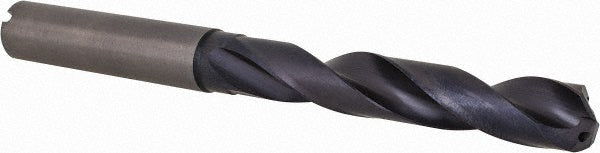

The Guhring 9085110065000 is a 0.2559" Solid Carbide drill bit with a nano-A finish, 140° point. Suited for titanium alloy. Series 8511.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit finish coatingnano-A
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.2559
Drill bit size range0.2500 - 0.3000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length2.0866
Flute typeSpiral
Material gradeDK460UF
Maximum drilling depth1.7030
Number of flutes2
Overall length3.5827
Point typeVA
Primary workpiece materialTitanium Alloy
Shank diameter0.3150
Shank length (mm)36.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
StandardsDIN 6535; DIN 6537 L
Tool applicationSelf-Centering
Web configurationTapered
Web thinningWeb-Thinned
